MEYRA MC2

REAR-WHEEL DRIVE POWER WHEELCHAIR



The MC2 Power Wheelchair is well designed, durable, and heavy duty. It’s the ideal load balance, powerful motors and high capacity controller system that makes it easy to drive with precise control. It’s the easy customisation of different seating and backrest systems, controller and joystick combinations, along with a wide range of options and accessories that makes the MC2 very versatile for a wide range of conditions—and perfect for you!

REAR WHEEL DRIVE

Adjustable seat width

Power Back rest

POWER Seat Tilt

High Quality

Crash Tested

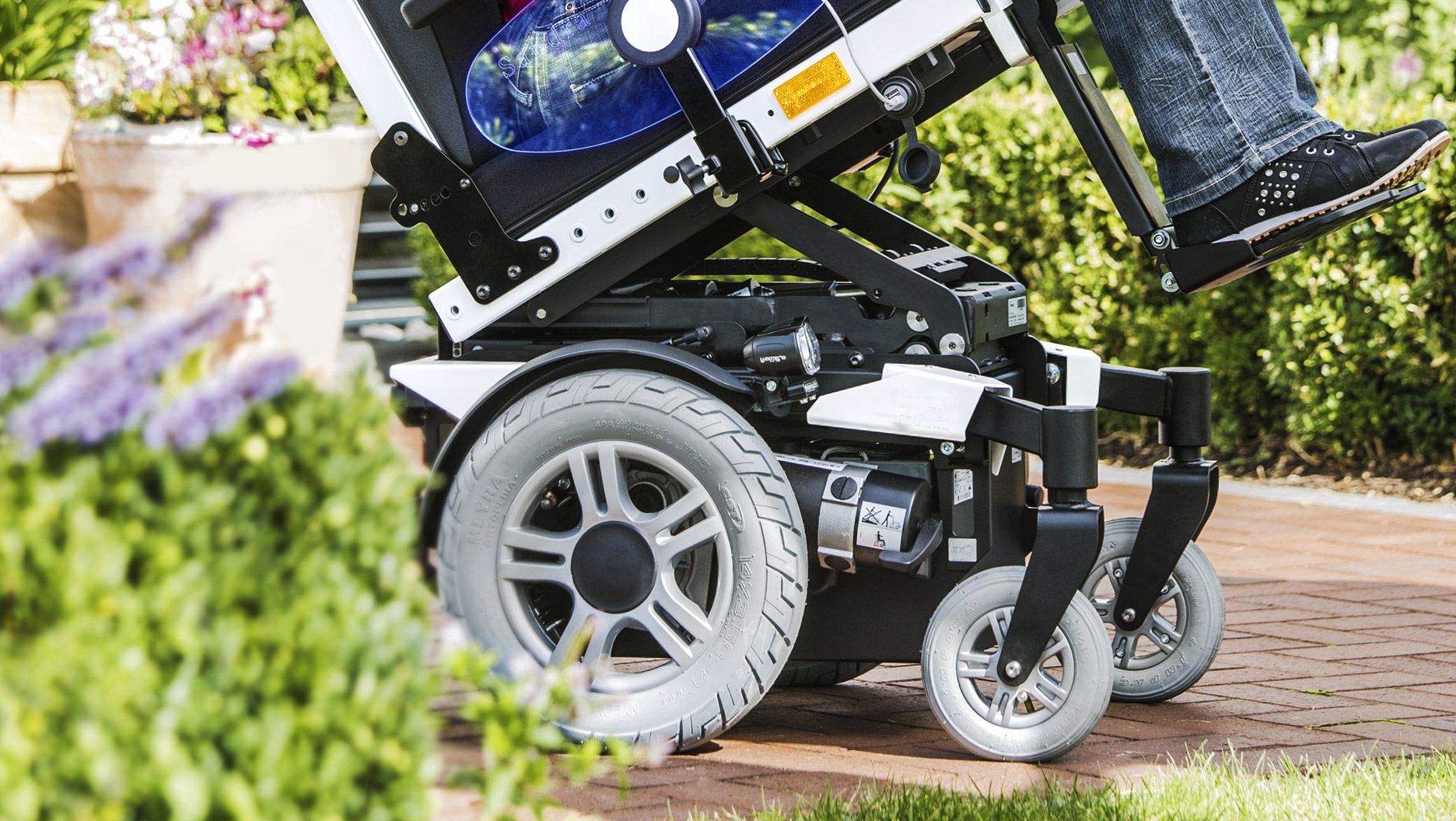

REAR WHEEL DRIVE

With the MC2’s rear wheel drive configuration, you don’t need to worry about what’s happening behind you, as most of the chair is directly below or in front.

Rear-wheel drive chairs have a smooth ride thanks to larger casters.

Rear-wheel drive chairs have the highest top speed of all configurations, and are easier to handle at higher speeds.

POWER BACK REST & SEAT TILT

Get the pressure relief you need with the MC2’s 50° power seat tilt and 60° backrest recline.

Tilt systems have numerous health benefits, including reducing the risk of pressure injuries, reducing shear force on the base of the spine, oedema management, easier transfers and reduction of fatigue.

A tilt system makes you more comfortable and reduces back pain, meaning you can be more productive and get more out of your day.

ADJUSTABLE SEAT WIDTH & DEPTH

Hit the sweet spot with the MC2’s adjustable seat width (380 – 650 mm) and adjustable seat depth (400 – 560 mm).

Adjustable seat width is important for comfort and function. Too narrow puts pressure on the hips and thighs; too wide, and you don’t get the posture support you need. Seat depth too needs to be just right for correct posture. The MC2’s adjustability means you can get the comfort and support level you need.

ACCESSORISE & CUSTOMISE



The Meyra MC2 comes with a full range of accessories, including the MySeat seat system, luggage rack, crutch/cane holder, safety belt with buckle, odometer, operating hours counter, rear view mirror, pelvic belt, kerb climber and occupant restraint system.

Available in a range of frame and accent colours.

MEDICAL CONDITIONS

SUITABLE FOR

  • Traumatic brain injury
  • Multiple sclerosis
  • Cerebral palsy
  • Paraplegia
  • Obesity
  • Parkinson’s
  • Stroke
  • Leg amputations
  • Geriatric care



SPECIFICATIONS
Seat width 38 – 65 cms
Seat depth 40 – 56 cms
Backrest height 45 – 50 cms
Legrest length 28 – 50 cms
Armrest height 24 – 35 cms
Seat height – front 44 – 68 cms, (depending on tyre combinations)
Overall length – with legrests Approx. 113 cms
Overall length – without legrests Approx. 83 cms
Overall width 58 – 62 cms
Wheel size front 230 x 70mm/ 260 x 70mm
Wheel size rear 320 x 60mm/ 356 x 75mm
Maximum obstacle climbing height Approx. 60mm
Turning radius Approx. 84 cms
Driving range 35 – 40 kms with 73 ah batteries1
Chair weight Approx. 100 kgs, no batteries
Maximum client weight 160 kgs
Motor power rating 350 watt 4 pole German motors
Maximum gradient 15 degrees
Mechanical seat tilt 0 to 10 degrees
Seat raise 300mm
Power seat tilt 0 to 50 degrees, tilt in space
Mechanical backrest -10 to + 30 degrees
Power backrest recline -10 to + 50 degrees
Compliance testing ISO7176 strength & durability standards
ISO7176-19 crash test requirements

 1 Distance will be affected by client weight, terrain and battery condition

*dimensions in mm, weights in kg, wheels in inches

**speeds in mph (km/h), dimension tolerances ± 10 mm ± 2°

FRAME & ACCENT COLOURS

Matte Black

Polar White

Magic Blue

Red Metallic

Lemon Reflex

Sun Yellow

ACCESSORIES

Luggage rack

with metal rods
CODE: 994

Rear-view mirror right

CODE: 906

Rear-view mirror left

CODE: 927

Rear marking tape

only in conjunction with ErgoSeat
CODE: 2676

Rear marking plate

CODE: 676

Immobiliser, key

CODE: 4795

Walking aid holder

CODE: 970

Retainer strap with buckle

included as standard with 13 km/h
CODE: 833

Therapy table

swing-away to the side
CODE: 4646

Step climber

CODE: 862

Rigid pelottes (pair)

CODE: 957

Swing-away pelottes (pair)

not in conjunction with CODE 24
CODE: 954

USB charger socket

CODE: 781

Mount for mobile phone holder

not in conjunction with OMNI II environmental control, CODE 839
CODE: 782
