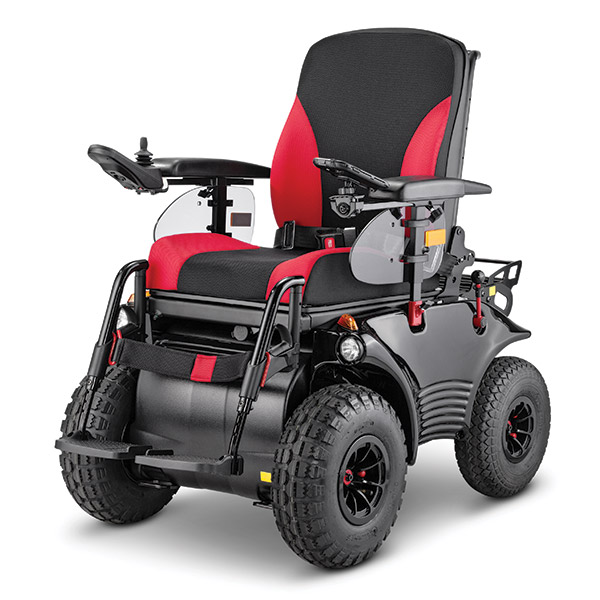

MEYRA OPTIMUS 2

HEAVY DUTY POWER WHEELCHAIR



The Optimus 2 heavy duty power wheelchair is great on or off the beaten path. Whether you need to make a long trip around town or want to go off road, the Optimus 2 will take you there.

Big 360 x 120 mm front wheels make short work of kerbs, gaps and make boarding trains and buses easier.

Ride comfort and safety with a range of seating systems and options, without sacrificing manoeuvrability.

LONG-RANGE BATTERY

FRONT WHEEL DRIVE

USER WEIGHT UP TO 150 KGS

High Quality

Crash Tested

LONG RANGE BATTERY & POWERFUL MOTORS

The Optimus 2 chews the ground with its 950 watt transaxle motor & gearbox.

The Optimus 2’s big battery will tackle short trips or long distance. Drive up to 70kms with the 107 ah batteries on a single charge.

An independent wheel suspension system and terriffic climbing power are ideal for paved roads and challenging kerbs.

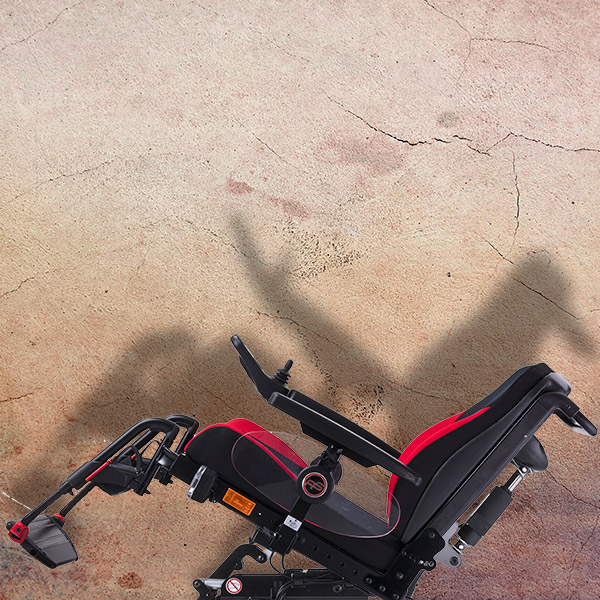

POWER SEAT TILT & POWER BACK RECLINE

Get the pressure relief you need with the Optimus 2’s 35° power seat tilt and 50° power backrest recline.

Tilt and recline systems have numerous health benefits, including reducing the risk of pressure injuries, reducing shear force on the base of the spine, oedema management, easier transfers and reduction of fatigue.

A tilt and recline system makes you more comfortable and reduces back pain, meaning you can be more productive and get more out of your day.

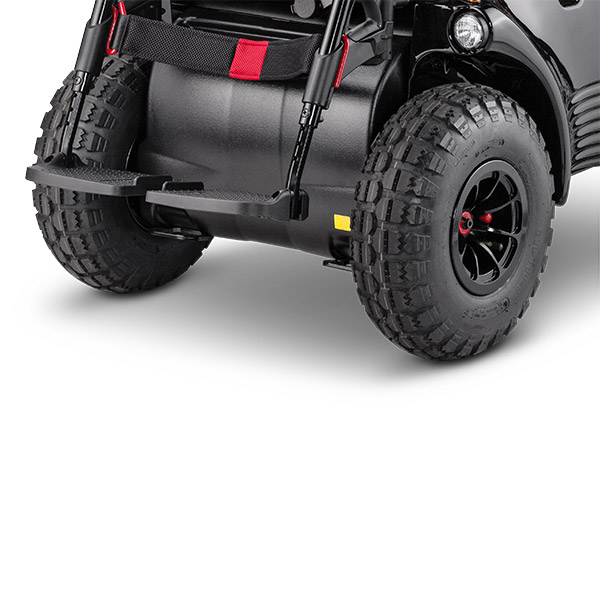

FRONT WHEEL DRIVE

Obstacle climbing ability is the strength of front wheel drive power wheelchairs. FWD also have great stability and weight distribution.

FWD power chairs manage tight corners well, as they have a shorter front end than other configurations. With rear wheel servo steer, the Optimus steers well.

FWD chairs are usually a smoother ride outdoors, due to having larger casters than mid wheel drive chairs.

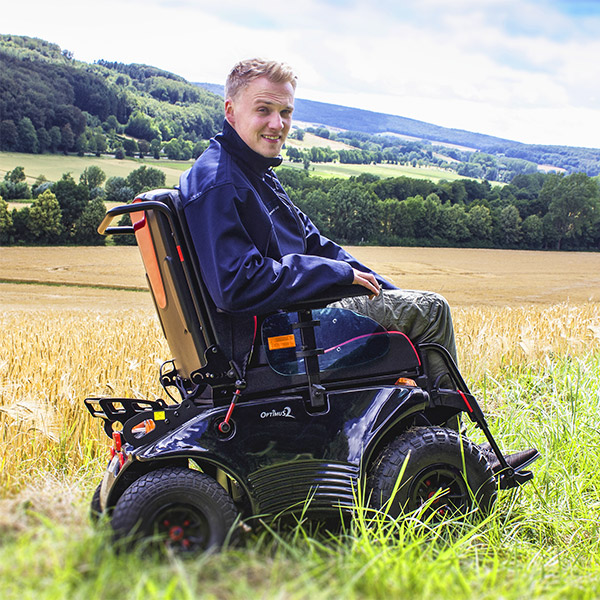

SPORTY COLOUR SCHEME

Conquer the road in style.

The Optimus 2 heavy duty power wheelchair not only packs the grunt you need, it looks cool doing it.

Black anodised rims set off the bold red highlights to create a sleek, sporty look that stands out.

Just perfect to help you make a statement.

USER WEIGHT UP TO 150KGS

The Optimus 2’s combination of rugged engineering and powerful drive train mean it can take a user weight of up to 150kgs.

The adjustable seating system and independent suspension will make your ride comfortable and secure.

Choose from a range of seating systems.

MEDICAL CONDITIONS

SUITABLE FOR

  • Multiple sclerosis
  • Cerebral palsy
  • Paraplegia
  • Obesity
  • Parkinson’s
  • Stroke
SPECIFICATIONS
Seat width 38 – 56 cms
Seat depth 42 – 53 cms
Backrest height 55 cms/ 64 cms
Legrest length 38 – 52 cms/ 42 – 56 cms
Armrest height 19 – 25 cms/23 – 29 cms
Seat height – front 58/61/65 cms1
Overall length – with legrests Approx. 116 cms
Overall length – without legrests Approx. 103 cms
Overall width 68 cms
Wheel size front 360 x 120mm
Wheel size rear 320 x 100mm
Maximum obstacle climbing height Approx. 110mm
Type of steering Direct, rear wheel servo steer (forklift-style)
Turning radius Approx. 120 cms
Driving range 50– 70 kms with 107 ah batteries2
Chair weight Approx. 150 kgs, no batteries
Maximum client weight 150 kgs
Motor power rating 950 watt transaxle motor gearbox
Maximum gradient 18 degrees
Mechanical seat tilt +7 to + 22 degrees/ +20 to + 35 degrees
Power seat tilt +7 to + 22 degrees/ +20 to + 35 degrees
Mechanical backrest 0 to + 30 degrees
Power backrest recline -10 to + 50 degrees
Compliance testing
ISO7176 strength & durability standards, ISO7176-19 crash test requirements
Mechanical tilt-in-space 7-22° / 5-20° / 20-35°
Back angle electric -10° to +50°

1 Depending on seat configuration
2 Distance will be affected by client weight, terrain and battery condition
Dimension tolerances ± 10 mm ± 2°
Data subject to changes

ACCESSORIES

Immobiliser

key only in conjunction with R-Net
CODE: 4795

Retainer strap with buckle

CODE: 833

Rear-view mirror right

CODE: 906

Rear-view mirror left

CODE: 927

Rear marking tape

only in conjunction with ErgoSeat
CODE: 2676

Rear marking plate

for ERGOSTAR and RECARO only in conjunction with pushbar CODE 814
CODE: 676

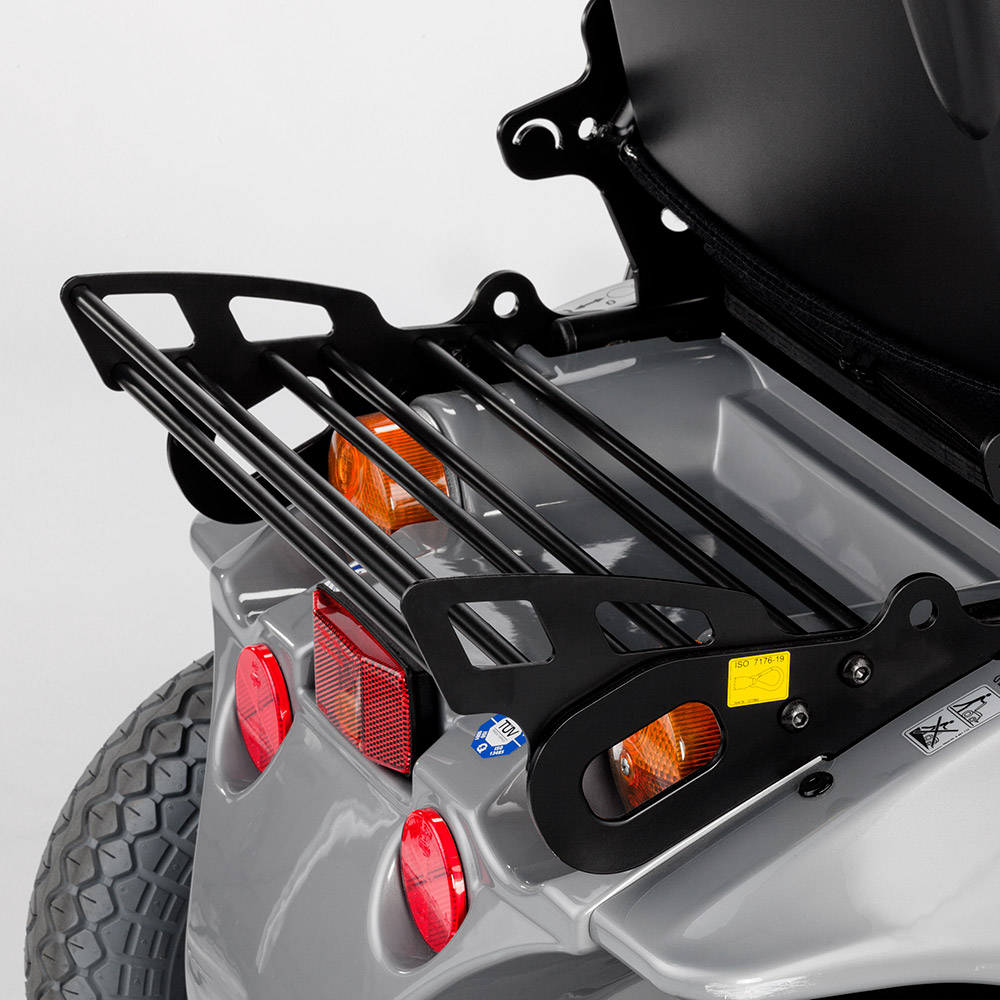

Luggage rack

CODE: 994

Walking aid holder

CODE: 970

Amplified horn

CODE: 539

Luggage box

black, not in conjunction with electric back adjustment CODE 25, RECARO
Special F CODE 567, RECARO Special W CODE 578 or
RECARO Special X CODE 584

CODE: 993

Therapy table

swing-away to the side, only in conjunction with side panel CODE 106

CODE: 930

USB charger socket

CODE: 781

Mount for mobile phone holder

not in conjunction with OMNI II environmental control, CODE 839
CODE: 782
