MID WHEEL DRIVE POWER WHEELCHAIR
Meyra’s Orbit will draw you in with its agile mid-wheel drive configuration and striking colour accent choices.
It’s no lightweight either, with a maximum user weight of 160 kgs.
Built with Meyra’s world-famous German engineering prowess, this is the mid-wheel drive you’ve been waiting for.
MID WHEEL DRIVE
Central leg support
Seat Tilt & Recline
MANOEVRABLE MID WHEEL DRIVE
With a mid wheel drive power wheechair like the Orbit, you sit right above the turning axis, so the chair can be turned 360 degress—on the spot. Those with very tight spaces in their homes and who need good manoeuvrability often choose mid wheel drives.
Mid wheel drive electric chairs are very stable due to the location of the chair’s centre of gravity. As a result, MWD chairs are the most stable chair configuration on slopes.

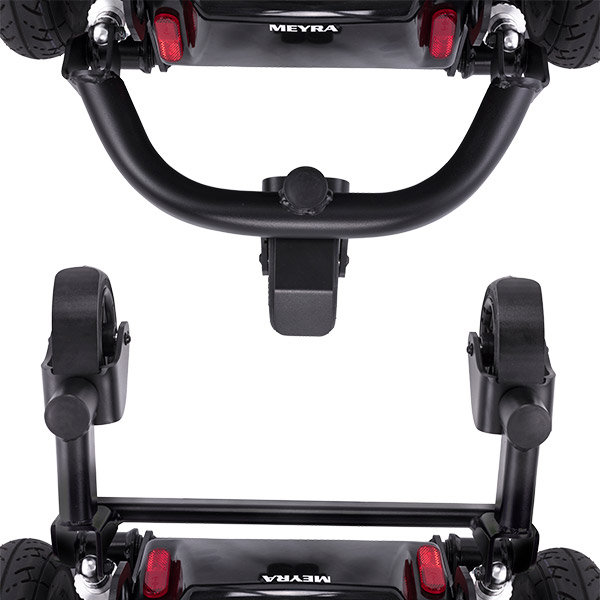

Single or double support castor
Choose the rear castor that suits you best.
If you need maximum manoevrability, choose the Orbit’s single-wheel rear castor.
Or, if you need the most stable rear castor configuration available—for example, for ascending vehicle loading ramps—then the dual-wheel rear castor will be perfect for you.

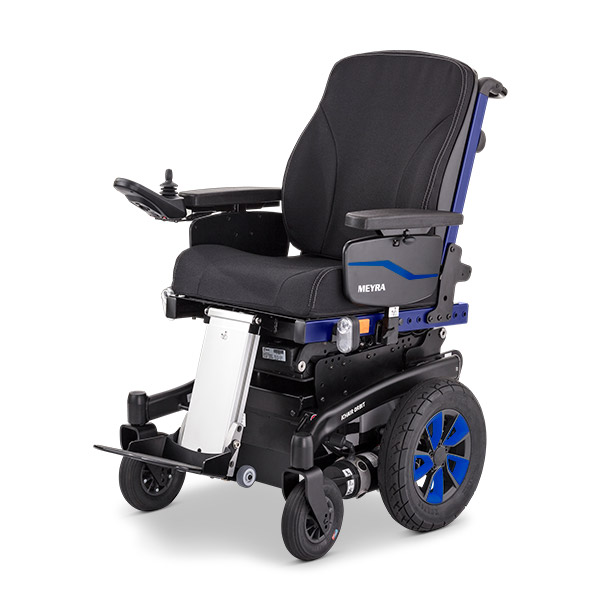

5 FRAME AND ACCENT COLOURS
Make the Orbit your own!
There’s five frame and accent colours to choose from: polar white, magic blue, red metallic, lemon reflex and sun yellow.
The colour accented sections are the seat tubes, back tubes, side panels, two piece legrest and rim inserts.

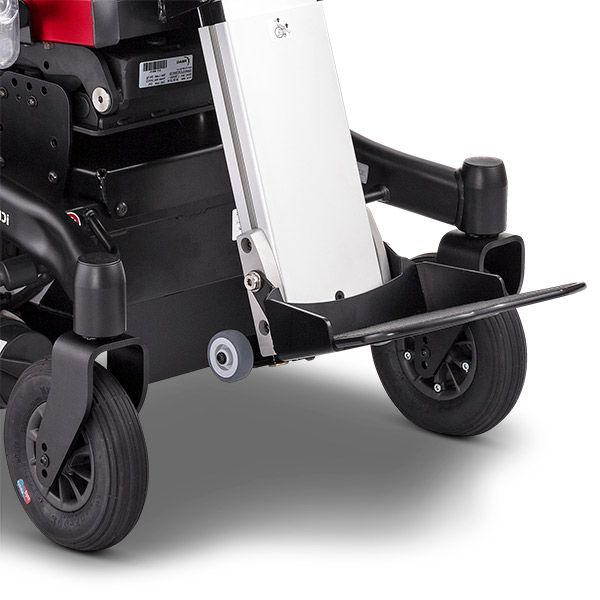

CENTRAL LEG REST, 90° KNEE ANGLE
90° is the ideal angle for the leg, providing better flexion for the knee joint.
Not only that, with 90° leg rest you can get closer to desks and tables.
A centrally-mounted 90° leg rest also makes the Orbit more compact overall.
Schedule a test drive
Reach out to one of our friendly team members today to book in your test drive.
|Seat width 1||380 – 650|
|Seat depth 4||400 – 560 / 400 – 560 / 480 – 530|
|Seat height front 6||430, 465, 500 / 440, 475, 510|
|Back height 4||450 – 500 / 530 – 580 / 640|
|Lower leg length 2||280 – 450|
|Armrest height 2||240 – 350|
|Length with footrests approx. 7||1,180 – 1,250 / 1,060 – 1,150|
|Length without footrests||910|
|Width, ready to move min. 8||600/600/630/680 with 12”|
|640/640/640/680 with 14”|
|Height without headrest 3||980 – 1,060|
|Transport height min.||630|
|Turning radius (with central legrest)||700|
|Turning radius (with single legrest)||800|
|Min. transport weight empty||120 – 165|
|Max. user weight incl. additional load||120 / 160 5|
|Speed in km/h||6 / 10|
|Motor power W||2 x 180 / 2x 350|
|Range with battery|
|50Ah (20h) max. in km||25 – 30|
|Range with battery|
|73Ah (20h) max. in km||35 – 40|
|Permitted uphill / downhill gradient||15%|
|Seat tilt, electrical||0° to 30° / 0° to 50°|
|Seat tilt, mechanical||1°, 4°, 7°, 10°|
|Stand-up aid (0° to -20°) with electrical tilt, lift 200 mm||0° to 45°|
|Back angle, electrical||10° to 50°|
1) see category Seat width 01
2) to seat pan without cushion
3) with adjustable back
4) seating systems: Standard / ErgoSeat / Recaro
5) with 350W motors
6) measured at 0° seat angle, 12“/14“
7) Single/central legrests
8) Code 38/43/48/53, with 350W +10 mm total width
Dimensions in mm, weights in kg, wheels in inches, speed in km/h
Dimension tolerances ± 15 mm,+/-2°, data subject to changes.
